fastdds_transport_viz

Shows which Fast DDS transport each ROS 2 topic is communicated over — UDPv4, UDPv6, TCP, shared memory (SHM) or zero-copy data-sharing — and why.

All distros below use rmw_fastrtps_cpp (rmw_fastrtps_dynamic_cpp works the same):

ROS 2 distro Fast DDS Notes
Humble 2.6 Prediction only — the binary has no statistics module
Jazzy 2.14 Prediction + --stats measurement
Lyrical 3.6 Prediction + --stats measurement
Rolling 3.x (head) Tracks Fast DDS main; best-effort in CI, not a required check

Source and issues: github.com/atinfinity/fastdds_transport_viz.

$ ros2 transport list -v --stats --topic '^/(chatter|bounded)$'
TOPIC     TYPE                 PUBS  SUBS  TRANSPORT         LATENCY  HZ  LOSS  REASON
/bounded  std_msgs/msg/Int32   1     1     DATA_SHARING x1   108 µs       0     same-host-guid,datasharing-qos-enabled-both,datasharing-domain-ids-match,datasharing-confirmed-no-data-submessages
    /bounded_pub@ba8b86aa803d(688) -> /bounded_sub@ba8b86aa803d(690)  DATA_SHARING  108 µs (max 155 µs)  10.0  0  measured=SHM (unmeasured, delivered)  same-host-guid,datasharing-qos-enabled-both,datasharing-domain-ids-match,datasharing-confirmed-no-data-submessages
/chatter  std_msgs/msg/String  1     2     UDPv4 x1, SHM x1  217 µs       0     same-host-guid,datasharing-disabled-writer,reader-no-shm-locator,common-udpv4-locator,measured-udpv4-traffic,both-shm-locators,measured-shm-traffic
    /talker@ba8b86aa803d(691) -> /listener_udp@ba8b86aa803d(689)  UDPv4  185 µs (max 239 µs)  1.0  0  measured=UDPv4 9pkt 1.19 kB  same-host-guid,datasharing-disabled-writer,reader-no-shm-locator,common-udpv4-locator,measured-udpv4-traffic
    /talker@ba8b86aa803d(691) -> /listener@ba8b86aa803d(692)      SHM    217 µs (max 254 µs)  1.0  0  measured=SHM 10pkt 1.31 kB   same-host-guid,datasharing-disabled-writer,both-shm-locators,measured-shm-traffic

statistics: 448 samples from 5 participant(s)

shared memory: /dev/shm 37.4 MB used of 16.7 GB (16.6 GB free) | Fast DDS 3.90 MB in 6 segment(s), 11 port(s), 1 data-sharing history, 1 data-sharing notification(s)

The same capture on a terminal (--color auto, default when stdout is a terminal):

colored table

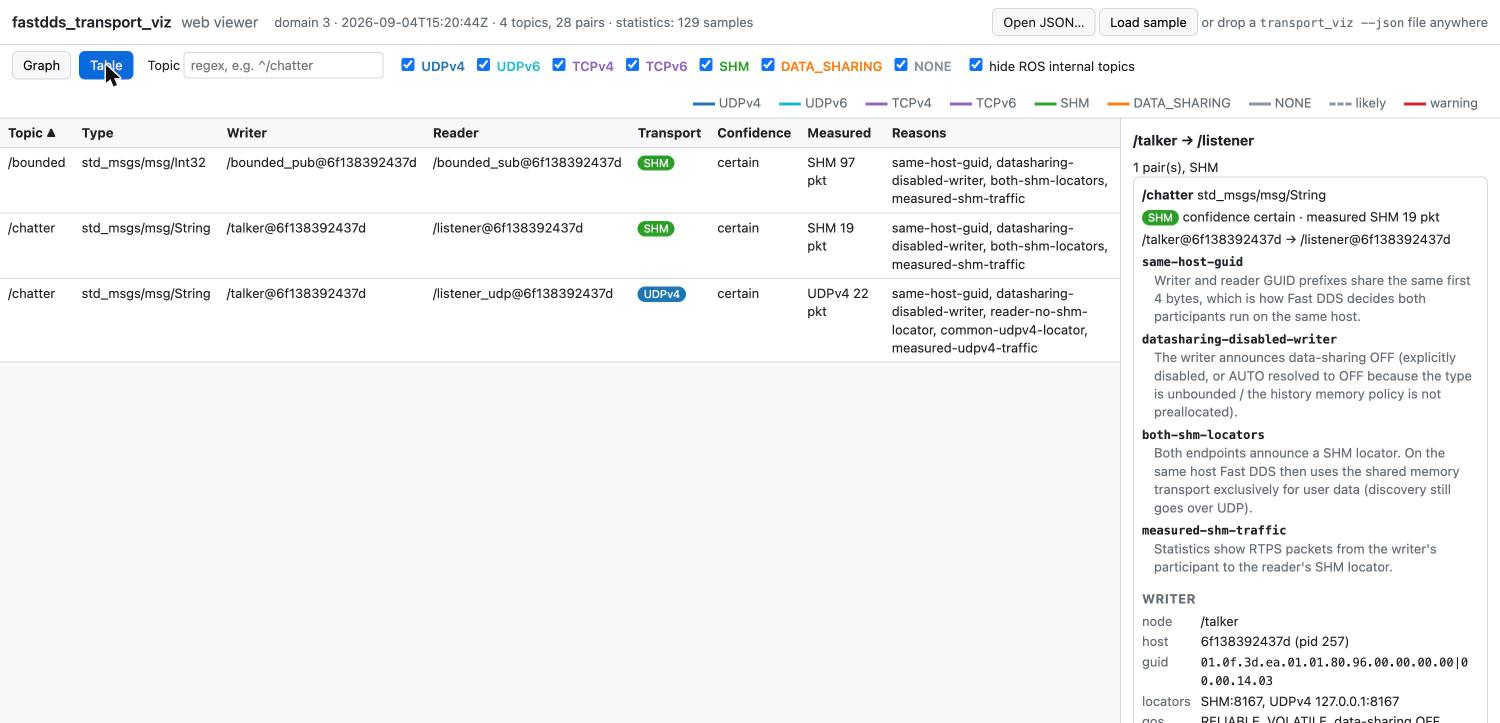

The same run opened in the web viewer (table view):

table view

  • The prediction comes from Fast DDS discovery data (announced locators and QoS) and needs nothing from the observed nodes.
  • With --stats, the measurement comes from the Fast DDS statistics module and shows the transport that actually carried packets.
  • Every verdict carries reason codes; --explain describes them.

Features

  • Transport per pair, from discovery alone. Every writer → reader pair gets a predicted transport (UDPv4, UDPv6, TCPv4/TCPv6, SHM, DATA_SHARING) with machine-readable reason codes; the observed nodes need no change. Pairs whose QoS do not match (reliability, durability, deadline, liveliness, ownership, partition) are shown as NONE with the policy that breaks them.
  • Measurement with --stats. The Fast DDS statistics module supplies the packets and bytes that actually flowed per locator, the write-to-notification latency (LATENCY), the delivered samples per second of each pair (HZ), lost and resent packets (LOSS), host names and process ids, and the proof of zero-copy data-sharing; a measurement that contradicts the prediction is flagged.
  • Several front-ends. A table with colors, --watch (live terminal view that marks what changed), --json with a published schema, the ros2 transport command, and a web viewer (graph and table, live updates through transport_viz_web with a timeline of the frames received so far, and recordings made with transport_viz_web --record replayed on the same timeline). transport_viz_web also serves the latest document as Prometheus metrics on /metrics.
  • Focus. --topic / --node regex filters, --explain for the codes in use, --advise for what to change to get past them, ros2 transport codes for all of them.
  • Shared memory of the environment. Capacity of /dev/shm, the Fast DDS segments, ports and data-sharing histories in it, stale leftovers, and whether the observed nodes share it at all.
  • Verified on Jazzy (Fast DDS 2.14) and Lyrical / Rolling (Fast DDS 3.x), x86_64 and arm64, with Discovery Server, LARGE_DATA (TCP), UDPv6, LOCALHOST discovery range, large SHM samples, zero-copy data-sharing, and two physical hosts (x86_64 ↔ Jetson Orin NX over Wi-Fi, prediction and measurement in both directions).

Quick start

docker compose build
docker compose run --rm dev bash
colcon build --symlink-install && source build/$ROS_DISTRO/install/setup.bash

ros2 run demo_nodes_cpp talker &
ros2 run demo_nodes_cpp listener &
ros2 transport list -v --explain

Run the tool in the same environment (env vars, XML profile, network/IPC namespace) as the nodes you observe.

On a Linux host, releases from 2.1.0 on also run without a build, from the image on GHCR (:humble, :jazzy, :lyrical; see Getting started): docker run --rm --net host --ipc host ghcr.io/atinfinity/fastdds_transport_viz:jazzy ros2 transport list -v.

Usage

ros2 transport list [--domain N] [--timeout S] [--quiet S] [--topic REGEX] [--node REGEX]
                    [--all] [-v] [--explain] [--locators] [--advise] [--stats] [--json | --csv]
                    [--color auto|always|never] [--watch [--interval S]]
ros2 transport diff BEFORE.json AFTER.json [--key node|guid] [--changes-only] [--json]
                    [--topic REGEX] [--node REGEX] [--all] [-v] [--explain] [--locators]
                    [--advise] [--color auto|always|never]
ros2 transport codes

ros2 transport is a thin ros2cli extension (package ros2transport) that runs the transport_viz binary of fastdds_transport_viz; the binary can also be run directly as ros2 run fastdds_transport_viz transport_viz, with the same options plus --list-codes (and transport_viz diff for ros2 transport diff).

Option Effect
-v expand writer → reader pairs under each topic
--explain append a legend for the reason codes used
--locators add a line under each pair with the locator the tool selected and the locators that actually carried packets (implies -v; ignored with --json, which always carries them)
--advise add a fix <code>: … line under each pair for its reason codes that have a remedy, and the remedy under each code of the legend (implies -v and --explain; ignored with --json, which always carries them as reason_code_remedies)
--stats also show measured transports, latency and loss; observed nodes need FASTDDS_STATISTICS, see Measured transports
--json machine-readable output (schema_version: 1); open it in the web viewer
--csv one CSV row per writer → reader pair (RFC 4180 quoting, LF line ends, a header line first; an empty cell where the JSON value is null, lists joined with ;), for a spreadsheet or pandas; exclusive with --json, not accepted by diff. With --watch the header is printed once and each frame adds its rows, observed_at telling the frames apart
--topic REGEX only topics whose name matches
--node REGEX only pairs involving a node whose full name matches (its unpaired endpoints stay visible)
--all include services/actions and non-ROS DDS topics; each service or action is one SERVICE / ACTION row per client-server pair rather than its raw rq/ / rr/ topics
--watch re-render every --interval seconds, highlighting added/changed/removed pairs; keys q p v e a l f (with --json: JSON Lines with a changes object)
--color ANSI colors for transports and warnings (auto = only on a terminal)

ros2 transport diff BEFORE.json AFTER.json compares two saved --json documents (change a profile or an environment variable, run again, see what moved) without observing anything: the after snapshot is printed with the pairs that were added (+), changed (~) or removed (-) marked as in --watch, or with --json as the after document plus a changes object. Pairs are matched by node names (--key node, the default, so a restart of the nodes is not a change) or by GUIDs (--key guid, what --watch does); --changes-only keeps only the topics that moved. The exit status is 0 without changes, 1 with, 2 on an error, so it works in scripts. The web viewer compares two documents the same way and highlights the result. Details in How it works.

Documentation

  • Getting started — build (native or Docker), first run, --stats, watch mode, web viewer, first checks
  • How it works — decision rules, reason codes, hosts and addresses, where to run it, watch mode
  • Measured transports (--stats) — statistics topics, enabling them, the 10-instance pitfall
  • Data-sharing (zero-copy) — why ROS 2 topics show SHM by default and how to enable data-sharing
  • Web viewer — graph view and a topic-grouped table of --json output in the browser, live mode (transport_viz_web) and its history, recording and replay (--record), Prometheus /metrics, JSON schema
  • Architecture — components, the flow of one run, data model, Fast DDS 2.14/3.x layer, extension points
  • Development, verification and tests — Docker environment, packages, verification nodes, multi-container scenarios, tests, scale harness, release procedure, roadmap
  • Verification log — dated scale results and verification runs

Limitations

  • Fast DDS RMWs only. rmw_fastrtps_cpp and rmw_fastrtps_dynamic_cpp are supported (the launch test suite passes on both, see CI); nodes on CycloneDDS or Connext are not covered, and Fast DDS participants that are not ROS nodes appear only with --all (Discovery Servers, which have no endpoints, only in the participants section of --json, the -v footer and the web viewer). The tool refuses to start on another RMW (exit 1, naming it).
  • Linux only. macOS has no /dev/shm, and Docker Desktop cannot observe nodes on the host.
  • Run it where the nodes run. Same domain, same environment variables and XML profile, same network and IPC namespace. ROS_AUTOMATIC_DISCOVERY_RANGE=OFF hides everything.
  • Type hashes need ROS 2 Jazzy or later. A writer and a reader whose type names differ are shown as NONE with type-name-mismatch, except on Fast DDS 3.x (Lyrical and later) when both announce an XTypes TypeInformation that agrees: Fast DDS then matches them regardless of the names, and the pair carries type-names-differ-same-type (#213). Two versions of the same message definition are told apart by the ROS 2 type hash (REP-2011), which only the rmw of Jazzy and later announces: on Humble such a pair looks healthy, and the subscription still receives nothing. Fast DDS's own, older type description cannot stand in for it — measured on 2026-09-21, no Humble endpoint announces a TypeIdentifier, a TypeObject or a TypeInformation either, because rmw_fastrtps registers no type in the TypeObjectFactory those are filled from (Fast DDS 2.14, and so Jazzy, announces them just as little; see docs/verification-log.md). On Humble, rebuild and reinstall every node against the same version of the message package, and, if a machine with Jazzy or later is available, run the same graph there, where the tool does report the mismatch.
  • A prediction is a model. The verdicts encode Fast DDS's selection rules; some situations stay likely (marked ?) until --stats confirms them. Measuring requires FASTDDS_STATISTICS on the observed nodes before they start, and the shipped profile when a node talks to more than 10 locators.
  • Statistics are per participant (one per ROS node), so several topics between the same two nodes share one measurement.
  • Not a benchmark. LATENCY is Fast DDS's own HISTORY_LATENCY statistic (write-to-notification between the two histories), sampled during a short observation; it does not replace a load test or an end-to-end measurement, and across hosts it includes the clock offset. HZ counts the samples that reached each reader (#143); there is no writer-side publish rate: PUBLICATION_THROUGHPUT looked like one but is not (#137).
  • DDS Security (SROS2) is not supported and untested: the tool's participants carry no security configuration, so participants inside a secure enclave are not discovered.
  • Footprint. The tool adds two participants of its own to the domain, three on Humble (fastdds_transport_viz_names, a participant without SHM that reads the node names); all are filtered from the output.
  • Split shared memory. Nodes with the same host id in different IPC namespaces (network_mode: host without ipc: host) still select SHM or data-sharing between each other and lose every message. The pair is NONE with shm-ipc-namespace-split when the tool can tell: the two announce the same SHM port number (shm-port-collision, the usual case with one node per container), or the tool shares the IPC namespace of one of them (their SHM ports or data-sharing segments are only half there). Otherwise the pair stays SHM or DATA_SHARING and only shm-not-visible in the shared-memory line hints at it (#101, #110).
  • Native-buffer companions. On Lyrical and later rmw_fastrtps_cpp sends the samples of types with an unbounded uint8[] field over a companion topic <topic>/_buf_cpu. The tool adds the companion's counters to the parent pair (buffer-companion-folded) and shows the companion topic only with --all; a companion it cannot link to its parent stays visible with buffer-companion-unmatched, and its parent pair then shows no traffic of its own (#119).

Quality declaration

Both packages claim REP 2004 Quality Level 3, with one exception: Linux only, so Windows 10 (a tier 1 platform of REP 2000) is not supported. See the quality declarations of fastdds_transport_viz and ros2transport for the version policy and public API, change control, testing, dependencies and platforms, and SECURITY.md to report a vulnerability.
